CS136 - Tools and Techniques for Software Development
T 12:30PM - 2:20PM
MC 3003
Ege Ciklabakkal

0 | Linux Shell

0.1 | Introduction

ssh watiam@linux.student.cs.uwaterloo.ca
yes
password
echo $0
bash --version

0.2 | Basic Commands

ls
ls -a
ls -r

man ls

pwd

cd /usr/share/dict/

mkdir testing

Directory	Meaning
`.`	Current Directory
`..`	Parent Directory
`~`	User’s home directory
`~userid`	Userid’s home directory
`/`	Root Directory
starts with `/` or `~`	Absolute Path
Does not start with `/` or `~`	Relative Path

0.3 | More Commands

cat /usr/share/dict/words

cp main.c backup/main.c

mv hello.c backup/hello.c

zip file.zip foo1 foo2.txt foo3.out

find . -name .gitignore

alias marmsubmit="/u2/cs136l/pub/marmoset_submit"

0.4 | “Remote” Commands

scp hello.c watiam@linux.student.cs.uwaterloo.ca:~/cs136/a1/main.c

0.5 | Shortcuts

Ctrl + c = Kill the shell process Ctrl + d = End-of=file signal, process the input

0.6 | Editors

vi / vim cheat sheets

keystrokes	Meaning
:w	save
:wq	save and quit
:q!	force quit without saving
A	append to end of current line
I	insert at the beginning of current line
b	go to the beginning of the current word
e	go to the end of the current word
yy	copy the current line
Xyy	copy X lines starting at the current line
p	paste a line of copied text
dd	delete the current line
Xdd	delete X lines starting at the current line
:num	show current line number
gg	go to the first line in the file
G	go to the last line in the file
XG	go to line number X

0.7 | Streams

wc < /usr/share/dict/words # input redirection
wc /usr/share/didct/words # CLI argument (adds file name too)

< # stdin
> # stdout
&> # stderr

echo "text" > hi.txt
touch hi.txt # allows echo with >> to not output

0.8 | Terminal Configuration

PS1="Laptop Prompt \$" # note there is no whitespace between PS1, = and "
PS1="\u@\h:\w\$"
cp ~/.profile ~/.profile_backup
source my_customizations

0.9 | Summary

clang -o myprog hello.c
./myprog < myinput.txt > myoutput.txt

1 | More Linux Shell

1.1 | Globbing

Globbing Pattens / Wildcard Matching

? matches one character - ?.txt is any one char
* matches zero or more characters - *.txt ends in txt
[] specifies one character from a set [aeiou].txt is a vowel
[!] is the inverse - [!aeiou].txt is not a vowel
{} is a way to say “or” - *.{cc,cpp} is anything ending in cc or cpp

Use 'single' or "double" quotes to suppress globbing

1.2 | Pipes

head - c 20 sample.txt # -c is bytes, -n is lines

head -n 20 sample.txt > first20.txt
wc -w < first20.txt # coutns the number of words

head -n 20 sample.txt | wc -w
cat sample.txt | head -n 20 | wc -w
cat words*.txt | sort | uniq

shuf entrants.csv | head -n 10
shuf entrants.csv | head -n 10 | cut -f2 -d,
shuf -n 10 entrants.csv | cut -f2 -d,

1.3 | Embedded

echo "It is currently $(date) and I am $(whoami)"
echo 'It is currently $(date) and I am $(whoami)' # suppresses formatting
wc $(cat myfile.args) myfile.txt # runs wc on the txt file with the args file

1.4 | egrep

egrep CS136 sample.txt # is the same as
cat sample.txt | egrep CS136

| # and then
-i # case insensitive
"" # ignore egrep
cs136|CS136 = (cs|CS)136
[cC][sS]136 = (c|C)(s|S)136
[[:alpha:]] = [A-Za-z].
[^abc] = # not a,b,c
cs*(136) = # 136, cs136, cscs136
cs+(136) = # cs136, cscs136
(cs)?135 = # 136 or cs136
.* = #anything
^cs136 = # line starts with cs136
cs136$ = # line ends with cs136
\. = # escape character then period

1.5 | File Permissions

ls -l # file perms

Ownership	Changing Permissions
u	owner/user
g	group
o	other
a	all
Operator
+	add permission
-	revoke permission
=	set permission exactly
Permission
r	read
w	write
x	execute

chmod o+r file.txt # adds read perms
chmod g-x *.sh # revokes executing perms for all files ending in .sh
chmod a=rx file.txt = all users are read and execute

# chmod could alo be binary
# 756 would translate to 111101110 since 7 is 111, 5 is 101 and 6 is 110
# 777 would be 111111111 = everything (rwx)

1.6 | Quick Reference

Commands

Command	Meaning	Options
exit	log out
passwd	change your password
clear	clear screen
man command	show the manual page for command	man -k word shows a list of man pages that mention word
history	show all previously-issued commands
whoami	display your login name
date	display current date and time
pwd	display current directory
ls	list contents of current directory	ls -a show all files, including hidden files, ls -l show in long format
cp file1 file2	copy file1 to file2	cp -r dir1 dir2 recursively copy dir1 to dir2
mv file1 file2	move file1 to file2 (also used to rename)
rm file	remove file	can be used to recursively remove a directory, if -r option is used
touch file	update file’s last modified time to current time	can be used to create an empty file if file does not exist
cd dir	change directory to dir	cd - return to most recently visited directory
mkdir dir	create new directory dir in current directory	can specify more than one directory at once
rmdir dir	remove directory dir	only works if dir is empty; if not empty, use rm -r dir; can specify more than directory at once
echo string	display string to screen
chmod perms file	set permissions on file to perms
ps	display current processes	ps -a show all users’ processes, ps -A show ALL processes (incl. system processes)}
kill pid	kill process with number pid	kill -9 pid more forceful kill, for stubborn processes
who	show who is logged into this machine
time command	show amount of time taken executing command
fg	bring background job to the foreground	useful if you accidentally ran vim or emacs with an & (causing it to run in the background)
find dir -name “pattern”	find all files whose names match pattern in dir and its subdirectories
zip file.zip file1 [more files]	create a zipped archive named file.zip containing the files given as arguments	-r to recursively compress/archieve directories
Tools

Tool	Purpose	Options
cat f1 f2 …	display files f1, f2, … one after the other	cat -n f1 f2 … attaches line numbers
less file	display file one screen at a time
diff f1 f2	compare files f1 and f2; outputs instructions for converting f1 to f2	diff -w f1 f2 ignores whitespace
cmp f1 f2	compare files f1 and f2; outputs the first position where they differ
wc file	count the number of words, lines, and characters in file	wc -c file show just the number of characters wc -l file show just the number of lines wc -w file show just the number of words
egrep pat file	print all lines in file that contain pattern pat	egrep -n pat file print matching lines with line numbers egrep -v pat file print lines that do not match pat egrep -i to ignore case egrep -o only print matches
head file	print first 10 lines of file	-num prints num lines (e.g. head -5 file) head -n as alternate syntax
tail file	like head, but prints last 10 lines of file	tail -n +N instead of last 10 lines, output starting from line N
sort file	sorts the lines of file	sort -n file sorts strings of digits in numerical order
uniq file	removes consecutive duplicate lines from file	removes all duplicates if file is sorted
shuf file	randomly shuffles the lines in file	shuf -n num outputs num random lines from file
cut options file	extract portions from each line in file	cut -fN -dD extract field N from each line, where fields are separated by a delimiter D
Programs

Program	Purpose	Options
vim file	invoke vi IMproved text editor on file
vi file	invoke vi text editor on file (often redirects to vim)
emacs file	invoke emacs text editor on file
nano file	invoke nano text editor on file
wget url	fetch file from the web at url
curl	used to transfer data
less file	used to view file contents one screen at a time
xpdf file	display pdf file (requires the ability to launch graphical programs)
ssh machine	make SSH connection to machine; opens a secure shell on remote machine; type exit to end SSH connection	ssh -Y (or -X) machine enable X forwarding to allow use of graphical programs (must have X server running on local machine)
scp mach1:file1 mach2:file2	securely copy file1 on mach1 to file2 on mach2	can omit mach1 if it is the local machine; similarly for mach2

2 | Testing and Debugging

2.1 | Terminology

Black Box Testing = When tester has no/minimal knowledge of implementation

Corner case = more than one edge White-box = Tester has full knowledge of implementation Unit testing = Testing components in isolation Regression testing = All tests should be rerun after a code change

Errors

RTE = Illegal operation (div 0)
Logical error = logical msitake
Memory error = unexpected / illegal memory use (eg. trying to read value in a variable with no value, or trying to access memory outside of allocated memory)

2.2 | Assertion-based Testing

speaker that’s an assertion

2.3 | I/O Testing

Test Harnesses = a program that is used to test specific functionality of a program or its subset

CS136

.in = input
.expect = output

$>cat sqr_test1.in
1 5

$>cat sqr_test1.expect
Squaring 5 gets us 25

$>cat abs_test1.in
2 -42

$>cat abs_test1.expect
Absolute value for -42 is 42

# What does Run with Tests do?
./myprogram < test.in > test.out
diff test.out test.expect

2.4 | Debugging

Common Bugs

Using = instead of ==
Using less than (<) where less than or equal (⇐) or greater than (>) is needed, or vice versa
Using greater than (>) where greater than or equal (>=) or less than (<) is needed, or vice versa
Off by one errors; often due to the two mistakes highlighted above
Using bitwise or (|) where they intended to use logical or (||)
Using bitwise and (&) where they intended to use logical and (&&)
Not checking return values e.g. read_int or scanf returns whether the read was successful
Dereferencing a NULL pointer
Dereferencing an incorrect or dangling pointer

3 | Shell Scripting

3.1 | Introduction

#!/bin/bash
#File: basic.sh
# a script that prints the date, current user and current directory
date
whoami
pwd

# alternate first line
#!/usr/bin/env bash

# executing (1)
./basic.sh
chmod a+x basic.sh

# executing (2)
bash filename

3.2 | Shell Variables

x=1 # string
fullname="Nomair Naeem"
echo ${x} #good practices

word=hard
echo ${word} #hard
echo ${word}er #harder

echo "$course" #/courses/CS136L
echo '$course' #$course

echo ${PATH} # /usr/bin/clang_14.0.0/...

Variable	Meaning
${PWD}	present working directory (equivalent to executing pwd)
${HOME}	your home directory (equivalent to ~)
${SHELL}	your default shell
${PRINTER}	your default printer
${HOSTNAME}	your machine’s name
${PATH}	your default search path for commands and programs

3.3 | Command Line Arguments

Variable	Meaning
${0}	name of currently-running script
$1,$ {2},…	arguments 1, 2, … of current script/function
${#}	number of args supplied to current script/function (not including script name)
${@}	all args supplied to current script/function as separate strings (not including script name)

#!/bin/bash
#usage:  ./isItAWord.sh [word]
egrep "^$1$" /usr/share/dict/words

#assumes that isItAWord is available in the environment
./isItAWord.sh hello # hello
./isItAWord.sh hel # nothing

3.4 | Reading from Standard Input

#!/bin/bash
#usage:  ./isItAWordFromStdin.sh

echo -n "Input word: "
read input
egrep "^$input$" /usr/share/dict/words

# difference: script prompts the user to "Input word:"

#!/bin/bash
#usage:  ./isItAWordFromStdin.sh

read -p "Input word: "
egrep "^${REPLY}$" /usr/share/dict/words

3.5 | Conditional Statements

test 1 -eq 2 # OR
[ 1 -eq 2 ]
# 3 CLI arguemnts which represent the test that evaluates whether 1=2
# NOTE: whitespace here matters

$[ 1 -eq 1 ]
$echo $?
0
$[ 1 -eq 2 ]
$echo $?
1
$echo $?
0 # success code

Operator(s)	Meaning
==, !=	string equality and inequality
-eq, -ne	integer equality and inequality
-gt, -ge	integer greater than, integer greater than or equal to
-lt, -le	integer less than, integer less than or equal to
deprecated: -a, -o	and, or
!	negation
-e	file exists
-d	file exists and is a directory
-f	file exists and is a regular file
-r, -w, -x	file exists and is readable/writable/executable
-z	check if the length of a string is zero

[ -e $filename ] # checks whether the file exists, unary operator

[ expr1 -eq expr2 -a expr3 == expr4 ]
[ expr1 -eq expr2 ] && [ expr3 == expr4 ]
[ $var -gt 5 ] && [ $var -lt 10 ]
[ -f $file ] || [ -d $file ]
# use $$ and || instead of 'and' and 'or'
[[ 1 -eq $var && -r $file ]]
# [[]] allows you to use &&, || without wrapping in []

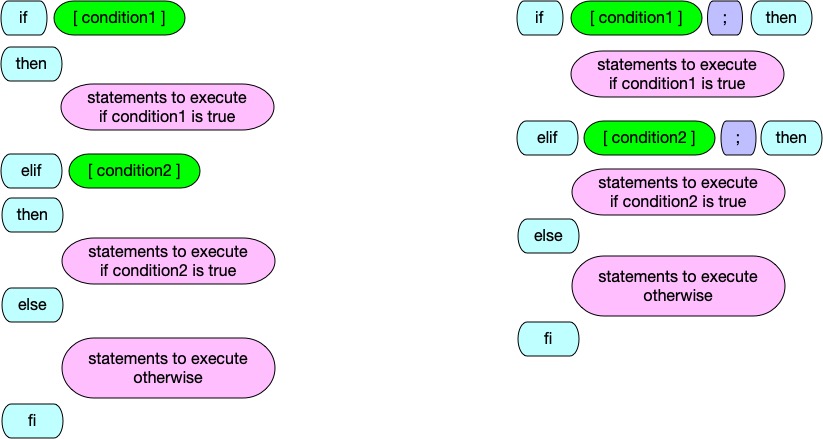

#!/bin/bash
#usage: ./goodPassword.sh [word]
egrep "^$1$" /usr/share/dict/words > /dev/null
if [ $? -eq 0 ]; then
   echo Not a good password
else
   echo Maybe a good password
fi # reverse if, closes it off

# REVISED

#!/bin/bash
#usage: ./goodPasswordWithChecks.sh [word]
usage() {
  echo Usage: $0 password
}
if [ $# -ne 1 ]; then
  usage
  exit 1
fi
egrep "^$1$" /usr/share/dict/words > /dev/null
if [ $? -eq 0 ]; then
   echo Not a good password
else
   echo Maybe a good password
fi

# CONCEPT CHECK
#!/bin/bash
course="CS136L"

if [ $course == 1 ]; then
  echo Found
else
  echo Not Found
fi

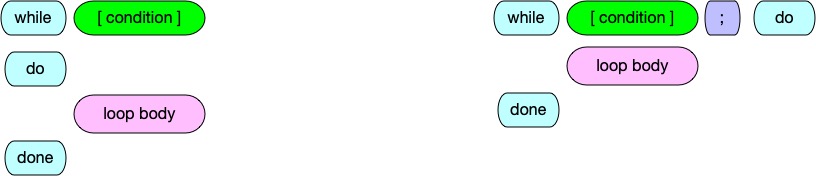

3.6 | Loops

#!/bin/bash
#usage: ./OneToN.sh [number]
x=1
while [ $x -le $1 ]; do # $1 as in the first argument
   echo $x
   x=$((x+1))
done

# UPDATED

#!/bin/bash
re='^[1-9][0-9]*$'
if [ $# -ne 1 ]; then
  echo Usage: $0 [positive integer]
  exit 1
elif ! [[ $1 =~ $re ]]; then
  echo "Argument provided is not a positive integer"
  exit 2
fi

x=1
while [ $x -le $1 ]; do
   echo $x
   x=$((x+1))
done

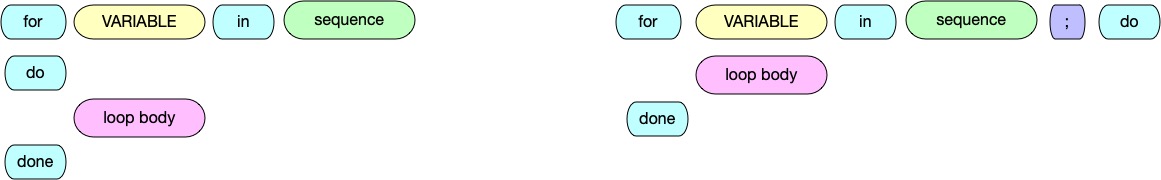

#!/bin/bash
for x in a b c d
do
  echo $x
done

for item in a b c d; do echo $item; done

mv ${filename} ${filename%cpp}cc # % truncates cpp from strings

#!/bin/bash
for filename in *.cpp; do
  mv ${filename} ${filename%cpp}cc
done

#!/bin/bash
# Usage: ./countWords.sh word file
count=0
for word in $(cat $2); do # without brackets, this would return 0
   if [ $word == $1 ]; then
      count=$((count+1))
   fi
done
echo $count

# QUESTION 1

#!/bin/bash
# Usage: ./ArgIterator.sh [any number of arguments]
while [ "$1" != "" ]; do
  echo "Number of arguments is $#"
  echo "Argument 1 is: $1"
  shift
done

# QUESTION 2

#!/bin/bash
sum=0;
for n in "$@"; do
  sum=$((sum+n))
done
echo $sum

4 | IDEs and VSCode

4.1 | Setup

Extensions

C/C++ Language
Remote Development

Working Remotely

watiam@ubuntu2204-004.student.cs.uwaterloo.ca

4.2 | Editor

4.3 | The clang Compiler (DON’T PUBLISH THIS)

Running code

Open a terminal and compile with command line
Set up a compiler and debugger to use VSCode GUI

Common compilers

Microsoft Visual C/C++ Compiler
GNU Compiler Collection (gcc)
clang/LVVM
- We MUST use this for CS136

$which clang
/bin/clang

$clang --version
Ubuntu clang version 14.0.0-1ubuntu1
Target: x86_64-pc-linux-gnu
Thread model: posix
InstalledDir: /bin

clang main.c
./a.out
./a.out < test.in > test.out

clang -std=c99 -g -Wall main.c -o myprogram

CFLAGS="-std=c99 -g -Wall -I/u2/cs136l/pub/common"
clang ${CFLAGS} main.c /u2/cs136l/pub/common/cs136.o -o myprogram

clang change.c
# runs change.c
clang -std=c99 -Wall main.c -I/u2/cs136l/pub/common executable.c myexec.c -g
# produces the executable a.out
clang main.c linalg.o vec.o -I/u2/cs136l/pub/lab4/q2 -o mathlib
# same as
clang main.c linalg.o vec.o -o mathlib -I/u2/cs136l/pub/lab4/q2

clang -O2 main.c
# does moderate optimization

4.4 | Compiling via VSCode

#tasks.json

"tasks": [
  {
            "type": "cppbuild",
            "label": "C/C++: clang build active file",
            "command": "/usr/bin/clang",
            "args": [
                "-fdiagnostics-color=always",
                "-fansi-escape-codes",
                "-g",
                "${file}",
                "-o",
                "${fileDirname}/${fileBasenameNoExtension}"
            ],
            "options": {
                "cwd": "${fileDirname}"
            },
            "problemMatcher": [
                "$gcc"
            ],
            "group": "build",
            "detail": "compiler: /usr/bin/clang"
        }
	]

5 | Git and Version Control

5.1 | Introduction

Core Concepts

Repository (repo): The location of the canonical/main version of source code
Working Directory: Copy of repository where you make changes before saving them
Staging area: Local collection of changes in working directory that you want to collect

Repositories can be local or remote

Local = storing projects only for yourself
Remote = Setup on a central server (GitHub)

git help X where X is any command is pretty helpful

5.2 | Basics

git init creates a .git directory
git status shows status (git status > step1.log) redirects output
git add tells git to track a file
git commit -m "message"
git log shows a log
git diff shows differences (eg. git diff --staged hello.c)
git rm removes a file and tracks it (same as rm main.c and git add main.c)
git mv moves a file
git clean shows which files are untracked

5.3 | Branches

master is the default, auto-created branch. note that HEAD does not always point to master

git branch makes a branch
git checkoutswitches branches
git merge merges branches

5.4 | Collaboration

git init initializes a local repository, but if we wanted to make a remote one:

git init -- bare initializes a remote repository
git push (origin master) uploads changes to remote repo
git pull downloads changes
git clone creates an existing copy

5.5 | Merging

Say we wanted to merge editor_prototype with master

git merge editor_prototype
git branch -d editor_prototype deletes the old branch

Merge Conflicts

are really annoying

5.6 | Undo

git revert inverts the changes in a specific commit, given the commit ID
git reset resets the HEAD and referenced branch to the specified commit ID
- --hard is dangerous and resets the staging area and working directory
- --mixed resets the staging area
- --soft only updates HEAD and branch reference
git checkout is used to switch branches, but can also switch commits and individual files
- $git checkout [SHA-1_for_a_commit]; -- path/to/file

5.7 | Git in VSCode

exists

6 | C/C++ Preprocessor

6.1 | Introduction and Header Files Includes

Specifying Header Files

Angled brackets: for files in the standard C library
Double quotes: for files you create

clang -E hello.c

6.2 | Macro Expansion

We used to use define, now we use const

const int x = 10;

int array[x];

6.3 | Conditional Compilation

Directives for conditional compilation:

#if, #ifdef, #ifndef, #elif, #else and #endif
At compile time if the condition is true (nonzero), block following the condition is forwarded to the compiler

#ifdef __unix__ /* __unix__ is usually defined by compilers targeting Unix systems */
# include <unistd.h>
#elif defined _WIN32 /* _WIN32 is usually defined by compilers targeting 32 or 64 bit Windows systems */
# include <windows.h>
#endif

6.4 | Commenting and Debugging

#include <stdio.h>

int main(void) {
  #ifdef DEBUG
  printf("Setting x to  1\n");
  #endif
  int x = 1;
  while (x < 10) {
    ++x;
    #ifdef DEBUG
    printf("x is now %d\n",x);
    #endif
  }
  printf("%d\n",x);
  return 0;
}

To turn debug on/off

clang -E -DDEBUG debug.c

6.5 | Include guards

Using include guards requires that every header file in the program adhere to the following pattern (include guards are not added in implementation files):

#ifndef UNIQUE_MACRO_NAME
#define UNIQUE_MACRO_NAME
// original header file
#endif

7 | Memory Checkers

7.1 | Introduction

Valgrind (the memcheck detector in Valgrind)

Use gcc
CS246 requires g++ and valgrind
valgrind ./prog

gcc -Wall -g -O0 test.c -o test
valgrind ./test

AddressSanitizer (asan)

Only produces output if something goes wrong

clang -O1 -fsanitize=address -fno-omit-frame-pointer -Wall -g test.c -o test
./test

Compiler flags/arguments

-wall turn on all warnings
-g0 produces debugging info
O0 turns off optimizatinos
-0 specifies the name of the executable file

7.2 | Uninitialized Memory

// File test1.c
#include <stdio.h>

int main(void){
  int i;
  printf("%d",i);
  return 0;
}

Compiler initializes all variables to 0 - bad idea

7.3 | NULL addresses

Don’t dereference it - this compiles, then crashes at execution

// File test3.c
#include <stdio.h>

int main(void){
  int *p = NULL;
  *p = 5;
  printf("%d\n",*p);
}

7.4 | Buffer Overflow

This compiles but prints garbage output

//File: buffer1.c
#include <stdio.h>

void print_element(int *arr, int index){
   printf("%d",arr[index]);
}
int main(void) {
  int a[10] = {0};
  print_element(a,10);
}

Buffer error, detectable with clang -fsanitize=addres O0

#include <stdio.h>
int main(void){
  int a = 5;
  printf("%d\n",*(&a + 1));
}

7.5 | Improper Stack Use

Compiles, crashes, produces garbave

// File stack0.c
#include <stdlib.h>
#include <stdio.h>

char *get_hello(){
  char str[20] = "Hello World!";
  char *toRet = str;
  return toRet;
}
int main (){
  printf("%s\n",get_hello());
  return 0;
}

7.6 | Heap Memory

What might go wrong?

Incorrect call to malloc
Invalid free
Premature free

Compiles but crashes

// File: heap3.c
#include <stdlib.h>

void memory_cleanup(int *memory){
  free(memory);
}

int main (){
  int elements [3];
  memory_cleanup(elements);
  return 0;
}

7.7 | Linked Structures

May be asked to determine how many bytes were leaked

8 | Separate Compilation and Build Automation

8.1 | Separate Compilation

clang *.c clang vec.c linalg.c main.c; echo 'Done compilation'

clang -c vec.c # NOTE: -c means separate, non-linked compilation
clang -c linalg.c
clang -c main.c
echo Done

Header (.h) files: We don’t provide header files: Header files are meant to be included and implementation files compiled. Object (.o) files: An object file contains the binary for the compiled code and additional information for the linker such as what identifiers are defined by the file and what identifiers are required.

clang -c vec.c
clang -c linalg.c
clang -c main.c
echo Separate Compilation Done
clang vec.o linalg.o main.o -o myexec
echo Linking Done
./myexec
echo Running Program Done

Order of executable components: Preprocessor, Compiler, Linker

8.2 | Build Automation

Modern build automation software can be used to perform a variety of tasks such as:

downloading and importing new versions of libraries being used
automatically retrieving the latest version of the source code e.g. from a git repository
running a code analysis tool against the source code to check for suspicious code, formatting etc.
running a documentation tool to generate revised documentation
building a directory structure containing images, fonts and other resources for the executable to use
compiling the code, to one or more targets e.g. iOS and Android
running and reporting on automated tests
creating an installer so that the program can be easily deployed

Popular build automation software

Make
Ant
Maven
Gradle
Bazel

8.3 | Make

A Makefile has rules, each with the format

target: prerequisites
        recipe # NOTE: this is tabbed in

PHONY target:

Any prerequisites for the .PHONY targets get their recipes run first

Generalizing using variables

Make variables are not bash variables
Assign using := not =, = overrides existing values
-MMD generates a special file with .d for dependencies for each implementation file

9 | Debuggers

9.1 | GDB

Testing and Debugging

Testing = running code, Debugging = investigating
A failed assertion or unexpected output is the manifestation of the defect, not the source

$gdb ./basic - running (gdb) layout src - window mode (gdb) set style enable off - no syntax highlighting -g - embeds debugging information that GDB can use

9.2 | GDB Commands

run - runs the program

run Hello 123 < file.in break (b) - sets up a breakpoint, must be used before run
break main watch - sets up a watchpoints continue
info breakpoints delete - deletes all breakpoints
delete 1 deletes one breakpoints enable / disable ID - deactivates a breakpoint / watchpoint print - shows the value of a variable display - shows the value of a variable at each step
undisplay / enable display / disable display next (n) step refresh list

backtrace - displays one line in each of the stack frames up / down - navigates the call stack record / reverse-next / reverse/step finish - executes all of the current function call and stops once stack frame is popped

GREAT FOR RECURSIVE FUNCTIONS

9.4 | More features and Reference Sheet

Command	Abbreviation	Description
run	r	Runs the selected program until the next Breakpoint or Watch
break	b	Sets a breakpoint at a line or function (Current line by default)
watch	wa	Sets a watchpoint
next	n	Steps through next line of code (Does not enter function call)
step	s	Steps into next line of code (Enters function call if any)
continue	c	Run from current point to next Breakpoint or Watch
info breakpoints	i b	List out all breakpoints and watchpoints
delete	d	Delete breakpoint or watchpoint with given id
print	p	Prints out the value of the given variable
whatis	what	Prints out the type of the given variable
display	disp	Print out the value of a variable at each step
undisplay	undisp	Undo a display command
up	up	Move up the call stack
down	do	Move down the call stack
backtrace	bt	Print a trace of the current call stack
finish	fin	Run to the end of the current function call
record	record	Begin recording additional information to enable reverse debugging (must be called after run)
reverse-next	rn	Steps backward through code (Does not enter function call)
reverse-step	rs	Steps backward through code (Enters function call if any)
set var	set var	Modify the value stored in a variable during execution

9.5 | Debugging in VS Code

Run -> Start Debugging

Julian's Website

Explorer

CS 136L
